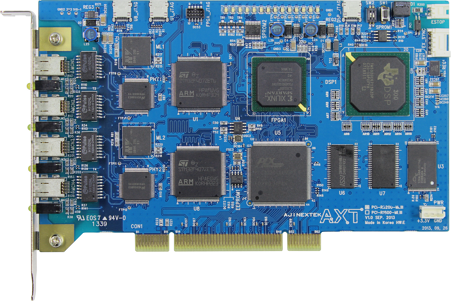

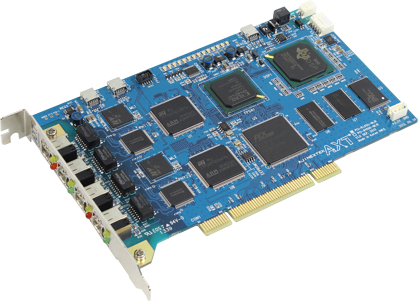

| Communication type |
MECHATROLINK-III(YASKAWA distributed network specification) |
| Communication port |
4 port (Up to 32 slaves can be installed) |
| Physical Layer |
IEEE 802.3u of the standard Ethernet |
| Transmission speed |
100Mbps |
| Transmission cycle time |
0.125ms, 0.25ms, 05.ms (automatic) |
| Transmission bytes |
64 Bytes |
| Control Axis |
Max. 32 Axes |
| Max. install board of system |
8 boards(Max. 256 nods) |
| LED display |
NET:LK(Yellow),ER(Red),AT(Green) |
| Number of configuration nodes |
Max. 32 nodes |
| Network connection |
Ethernet 100base-TX
Industrial mini dedicated STP cable (CAT5e)
Min. 0.2M (between nodes), MAX. 100M (total) |
| Bus interface |
PCI 2.2, 32bit, Universal Type |
| Connector |
Industrial mini I/O connector 1.27mm pitch 8p |
| Power supply / Current consumption |
DC 3.3V/Max 1.4A |
| Operating temperature / Humidity |
Temperature 0 ~ 60°C / Humidity Below 80% |
| Storage temperature |
-20 ~ 70°C |
| Weight |
124g |
| Exterior dimension of product |
174.63(W) mm x 106(L) mm |
