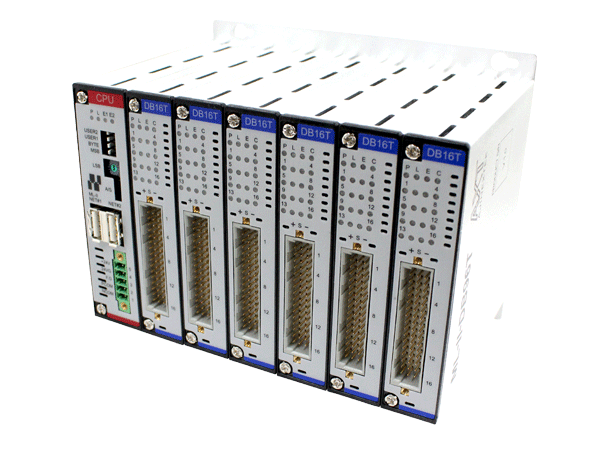

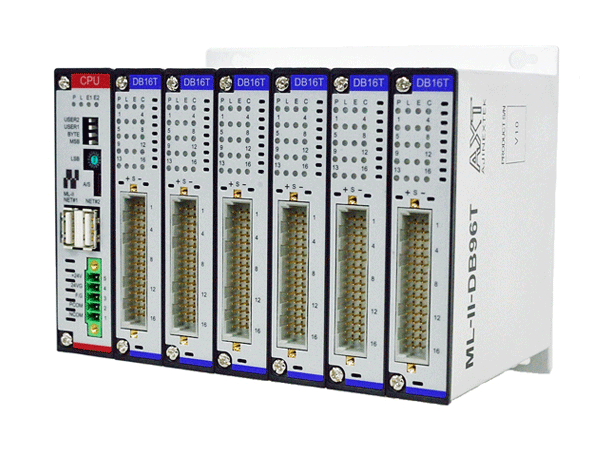

MLII-DB96T
네트워크 제품

· ML-II용  Slave 디지털 Input/Output 기능 확장모듈
· 최대 30개의 Slave 모듈 연결 가능 (노드ID 세팅)

· 96점 디지털 입출력 제어
 (입력 최소 2mA 이상/접점, 출력 최대 50mA 이하/접점, 24V 레벨)

제품사양

항목 사양
Module function Mechatrolink-II based slave 96 ch DIO function module
Node ID setting Decimal number rotary switch (0 ~ F), MSB switch (0~1)
Mounting method Fix the 4 corners of Rear Panel with M3 Screws

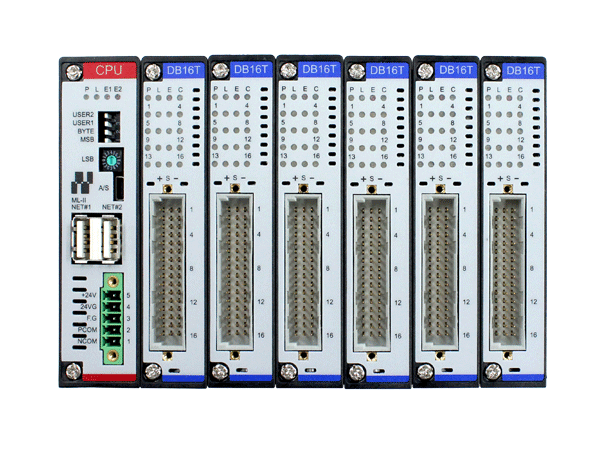

LED display SCPU : Power(Yellow), Live(Green), Error1(Red), Error2(Red)
DB16T : Power(Yellow), Link(Green), Error(Red), Com(Green)
INOUT1 ~ INOUT96 (Yellow)
Digital input / output 96 channels, 24VDC Level (48ch Input / 48ch Output)
IN1~IN16 : Photo-coupler isolation (More over Min. 2mA/ ch)
OUT1~OUT16 : Photo-coupler + Drive IC (Below Max. 50mA /ch)
PCOM, NCOM : Digital I/O Positive and Negative Common
Connector : HIROSE ( PCN10A-48P-2.54DS )
Power supply / Current consumption DC 24V / Max. 500mA (TB1 Connection to Outside Module)
Operating temperature / Humidity Temperature 0 ~ 55°C / Humidity 0 ~ 90% (no condensation)
Storage temperature -20 ~ 70°C
Weight 1017g
Exterior dimension of product 151 (H) mm X 121 (D) mm X 100 (W) mm
